Main factors affecting machining accuracy

For NC turning, CNC machining or prototypes making processes, Machining accuracy is the key factor of machined parts quality.

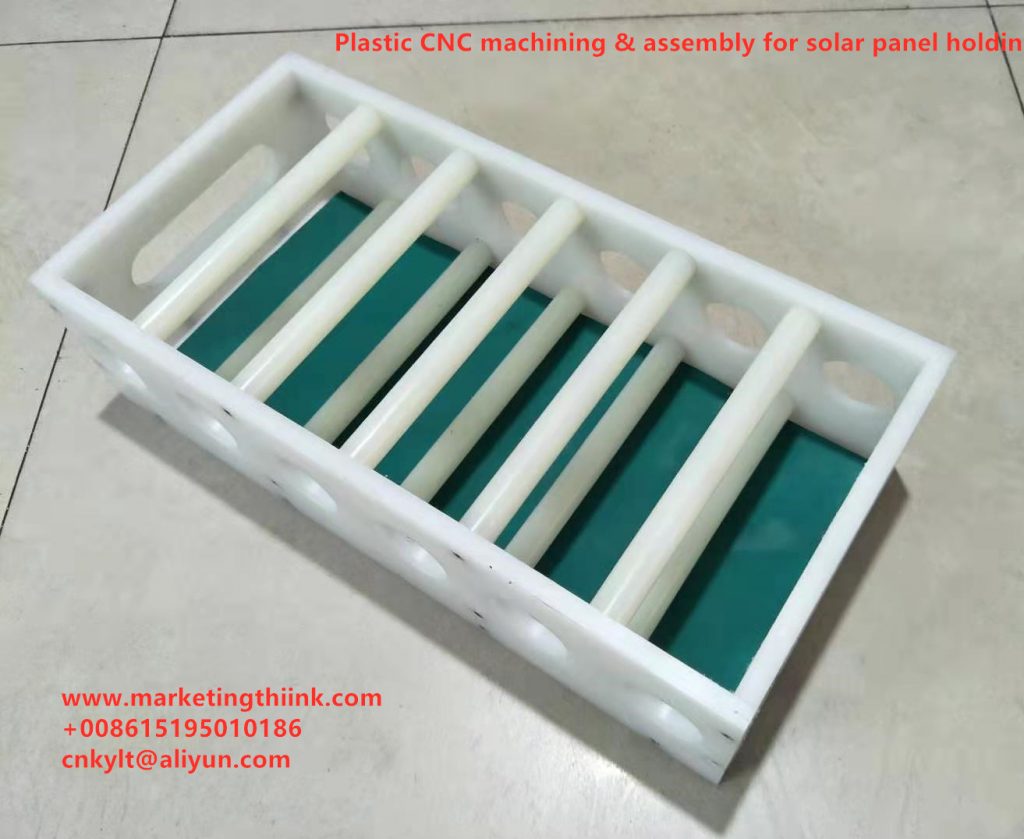

CNC machined plastic parts and assembly for solar panel holding
CNC machined plastic parts and assembly for solar panel holding

In the work-piece machining process, what factors affect the machining parts accuracy?

(1) machining principle error

Machining principle error refers to the error produced by machining with approximate forming movement or approximate shape cutter. In the NC machining of curve or curve. The forming movement of the tool relative to the workpiece is approximate. Furthermore, when the NC machine tool interpolates the straight line or the circular arc, it uses the small straight line segment of the parallel coordinate axis to approach the ideal straight line or the circular arc. There are processing principle errors here.

Aluminum CNC machining prototype
Aluminum CNC machining prototype

(2) machine error

The error of machine tool is caused by the manufacture, installation and wear of machine tool. Among all kinds of errors of machine tools, the main ones that affect the machining accuracy of workpieces are the rotary error of main pump and the error of guide rail.

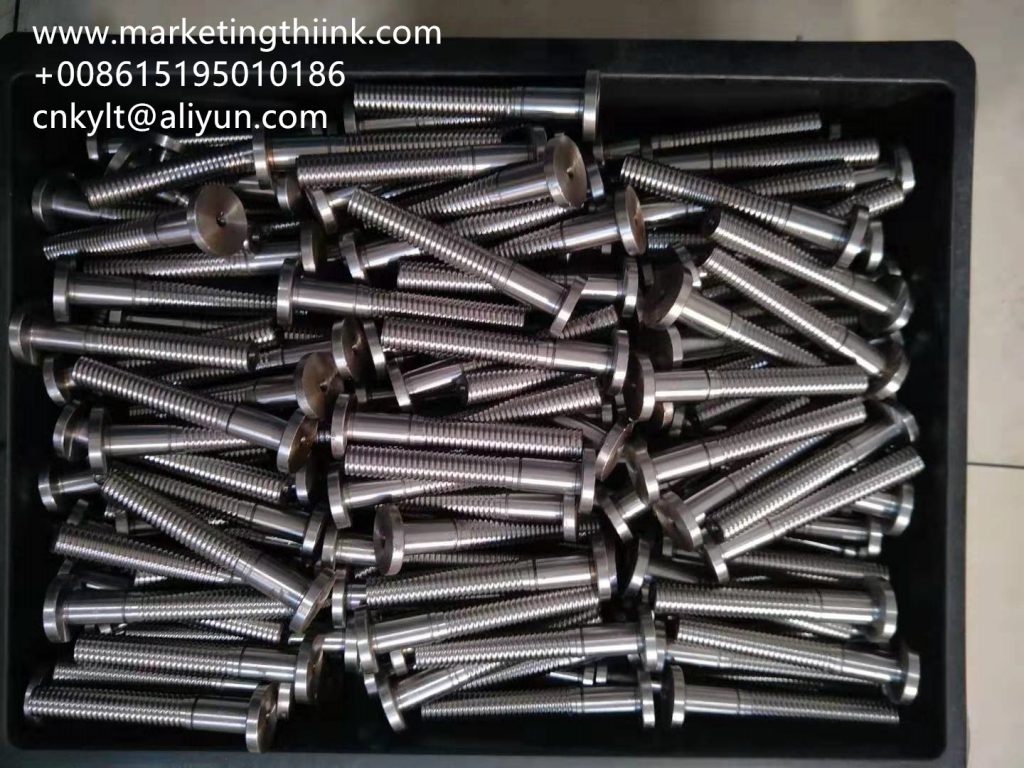

CNC lathing parts
CNC lathing parts

(3) fixture error

The main causes of the fixture error are the low manufacturing accuracy, low assembly accuracy and the wear of the working surface during the use of the fixture. The fixture error will directly affect the position accuracy and dimension accuracy of the workpiece surface, especially the position accuracy of the machined surface.

(4) CUTTING tool error

The manufacturing error and wear in use are the main causes of tool error. The influence of cutter error on machining accuracy varies with the type and material of cutter. For example, the dimensional accuracy of fixed size cutter (such as drill, reamer, etc.) will directly affect the dimensional accuracy of workpiece. For example, the shape accuracy of forming tools (such as forming turning tools, forming milling tools, etc.) will directly affect the shape accuracy of the workpiece.

Plastic CNC milling parts
Plastic CNC milling parts
