What is skin stapler nails feeding machine?

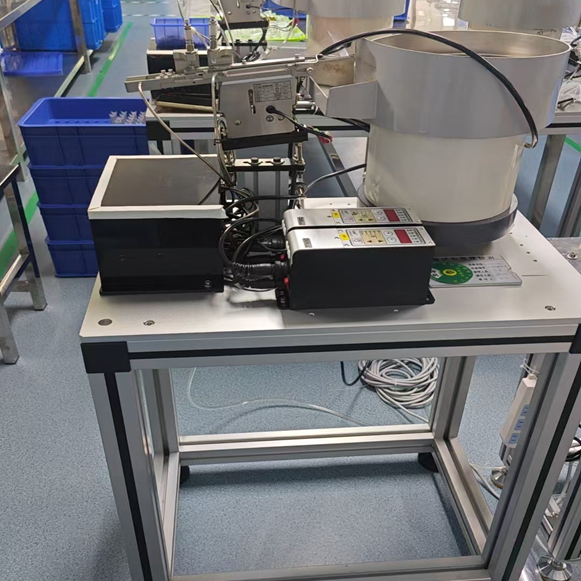

Skin stapler nails automatic feeding machine is a specially designed machine used to automatically feed stapler nails into a nail box. The automatic feeding machine for skin stapler nails organizes and supplies stapler nails into the nail compartment box. This innovation significantly enhances the filling efficiency and quality skin staplers.
Intruction of Automatic skin stapler nails feeding machine
– MACHINE NAME:
Automatic feeding machine for skin stapler nails
– sTAPLER NAILS fEEDING MACHINE Information:
1. Equipment specifications: 620*400*310
2. Air Pressure: 0.5±0.1Mpa
3. Equipment power: ≤1.5KW
4. Power requirements: single-phase AC 220V 50Hz

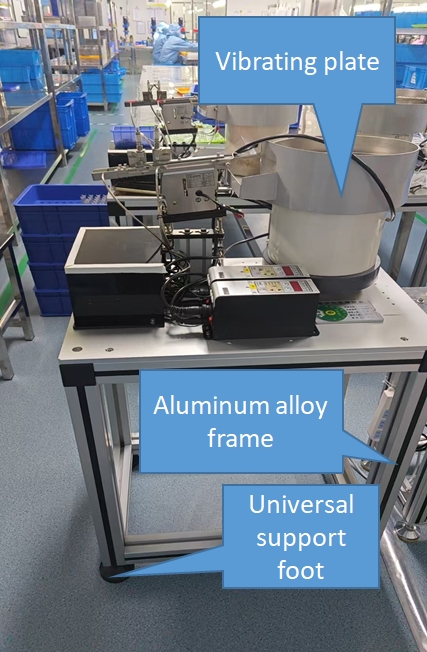

The Structure of Auto Skin Stapler Nails Feeding Machine?
The automatic feeding machine of skin stapler nails adopts vibrating plate feeding, corrects the material through the corrector, and the direct vibration transportation, and the cylinder blocks the transportation of the finished product. The production speed is fast, stable and quick to get started.
The auto skin stapler nails feeding machine working process:
- Auto skin stapler nails feeding machine working video, please visit youtube & just click follows link:https://www.youtube.com/shorts/L1etCqTqymE
- The description of our auto skin stapler naild feeding machine working process:

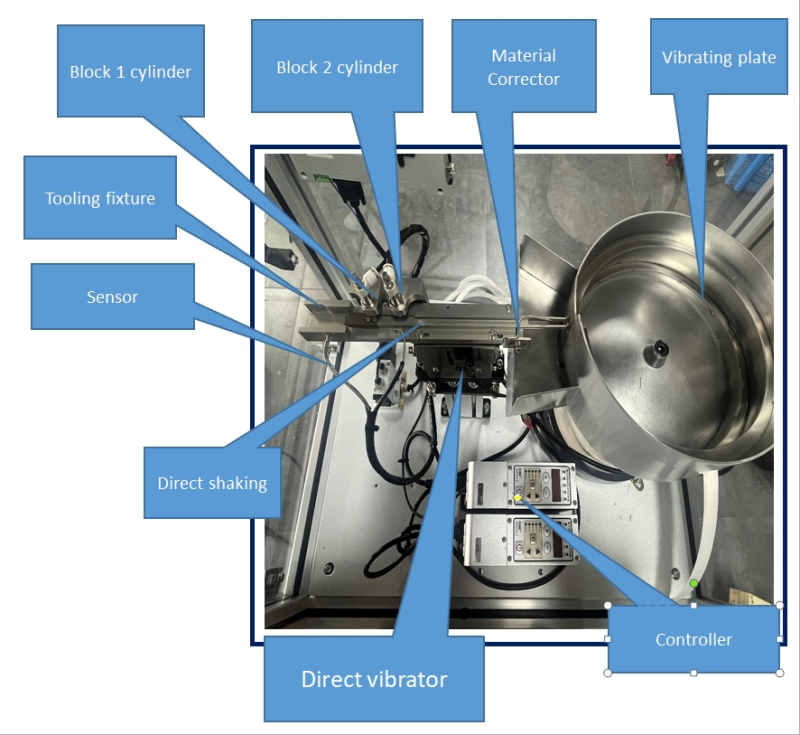

The operator puts the nail into the vibrating plate first, then touch screen starts. The vibrating plate starts to work to transport the nails to the feeding station, corrects the nails through the corrector, and transports them to the direct vibrator after correction. The No. 2 stop nail cylinder(Block 2 cylinder) is lifted, and the nails are sent to the No. 1 stop nail cylinder (Block 1 cylinder) position. A sensor used to identify whether the sutural nail box is put into the tooling fixture or not. When the sutural nail box is put into the tooling fixture, the No. 2 stop nail cylinder falls. The No. 1 stop nail cylinder is lifted to transport the nails to the sutural nail box, and the fed nails box is taken away after the action is completed. When there is no sutural nails box in the fixture, the No. 1 stop nail cylinder presses down, and the No. 2 stop nail cylinder lifts, and the nails are transported to the position of the No. 1 stop nail cylinder. And then the sutural nails box is put into the fixture to start another nails feed cycle, and so on repeatedly.
Key spare parts and brand of auto skin stapler nails feeding machine :
1. Air cylinder brand：SMC (QTY: 2PCS)
2. Fiber optic brand: Panasonic (QTY: 2PCS)
3. Direct shaking : Independent R&D (QTY:1PCS)
4. Vibrating plate: Independent R&D (QTY:1PCS)
More information of full set of skin stapler plastic injection molds, steel parts and assembling machine, please contact us: cnkylt@aliyun.com
