How to Avoid machined metal chip Entangling Workpieces

Working with metal part by turning or milling, the machined metal chip always entangling metal parts.

Normally, we can met following metal chip problems:

metal chip in machining process
metal chip in machining process

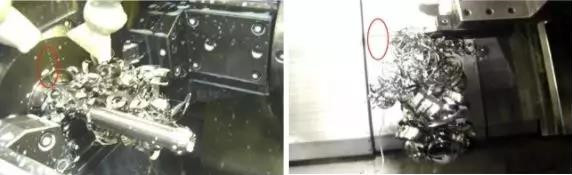

1.Metal Chip winding, workpiece can not be loaded and unloaded

2.Metal Chips must be removed after the machining finished.

metal chip problem
metal chip problem

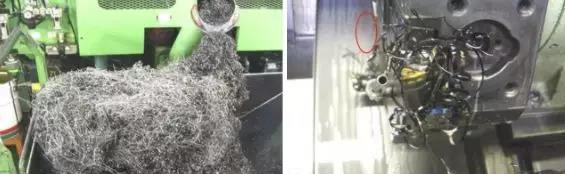

3.Metal Chip winding and outlet blockage

4.Metal Chip winding, tools life short and damaged easily.

Do you have any chip trouble? If so, it means that you are not familiar with the workpiece machining. If this continues, someone else has processed 100 pieces, and you may only have processed 90!

What are the shapes of metal chips?

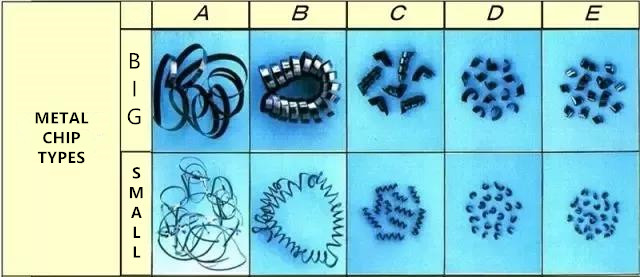

METAL CHIP TYPES
METAL CHIP TYPES

What can we read from cut metal chips?

metal chip shows machining problem
metal chip shows machining problem

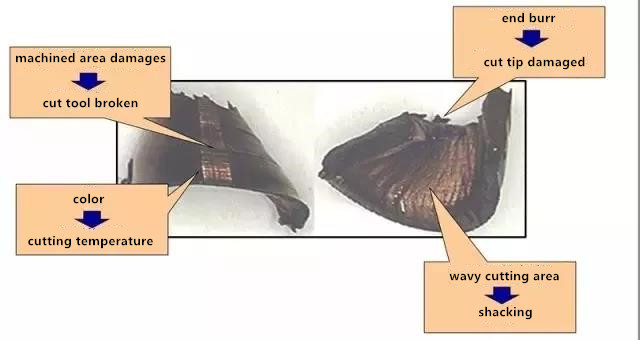

  1. if the machined metal chip area broken, damaged. That means the cut tool was broken.
  2. if the metal chip end has burr, it means the cutter tip damaged.
  3. the metal chip color shows the cutting temperature in machining process.
  4. if the metal chip has wavy cutting area, it means the cut tool was shacking in machining.
Cutting temp.(℃)
metal chip colors
Cutting Temp.(℃)metal chip colors
200Canary yellow300 Cyan
229Yellowish brown320Pale blue
240brown350Blue-grey

Cut Metal Chip Principle and Direction

PrincipleMethodNote
metal chip
become thick
increase feedingroughness become bad
metal chip
become thick
cutter tip radius
become small
roughness become bad
damaged easily
metal chip
become thick
Increasing Principal
Deviation Angle
cutter tip strength
become low
Metal Crimp
Reduced radius
use suitable metal
chip breaker
cutting resistance is higher,
cutter shacking

What are the methods of Metal chip breaking?

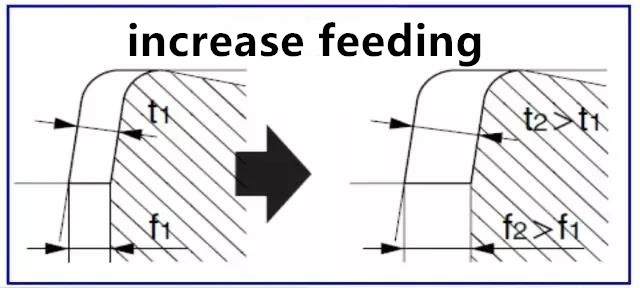

  1. Increasing chip thickness after feeding is beneficial to chip breaking

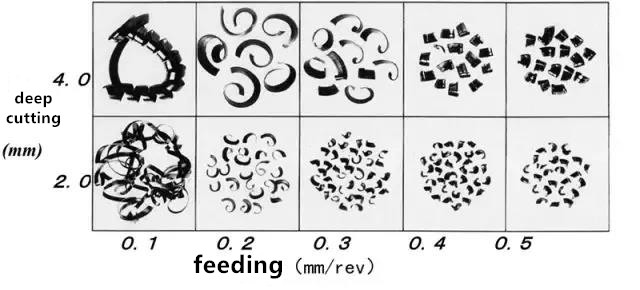

increase feeding in machining process
increase feeding in machining process
deep cut machining
deep cut machining

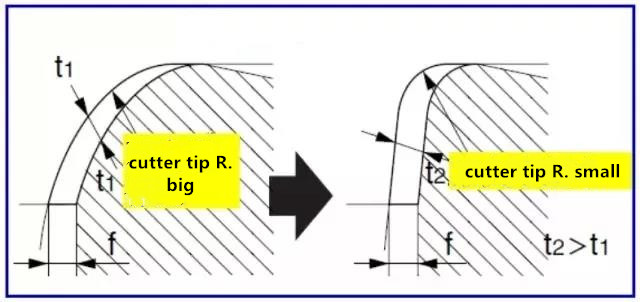

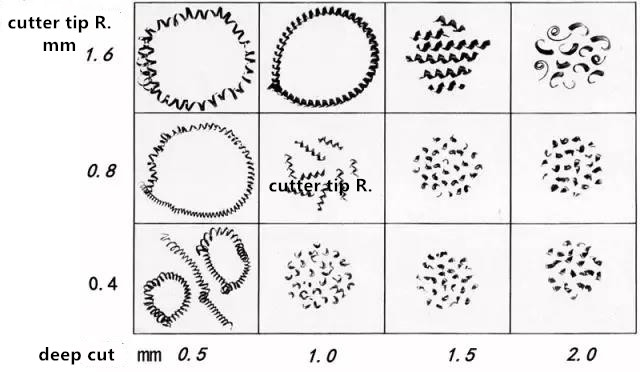

2.The radius of cutter tip roundness decreases and chip thickness increases.

cutter tip radius
cutter tip radius
metal chip types
metal chip types

3.Reduce the front corner

Chip compression ratio = hc/h

  1. The bigger the compression ratio is, the easier chip breaking will occur. At the same time, the cutting resistance will also increase.
  2. Compression ratio is related to linear velocity Vc. When Vc decreases, compression ratio increases, so reducing linear velocity is also beneficial to chip breaking.
  3. The decrease of the front angle, the large chip deformation and the increase of the compression ratio are beneficial to chip breaking.

Use sharp edge cutting tool

As photo show, under the same feed conditions, the blade has sharp edges, which is conducive to metal chip breaking.

sharp edge cutting tool
sharp edge cutting tool

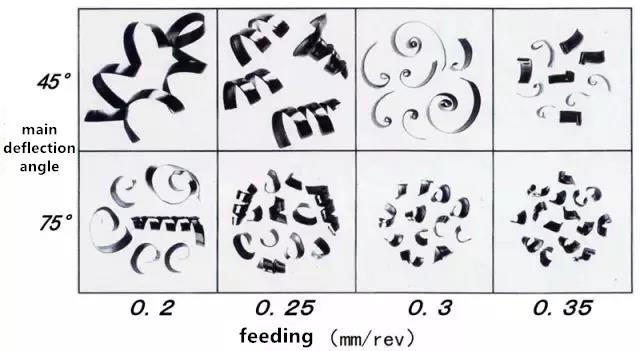

Increasing the main deflection angle and thicker chips are beneficial to chip breaking

main deflection angle increase
main deflection angle increase
main deflection angle increase machined metal chip
main deflection angle increase machined metal chip

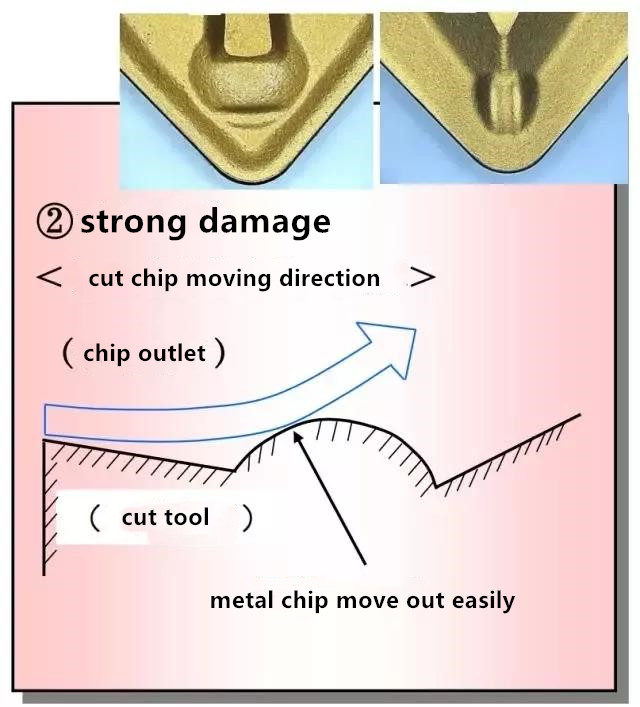

Protruding chip breaking groove to promote chip breaking

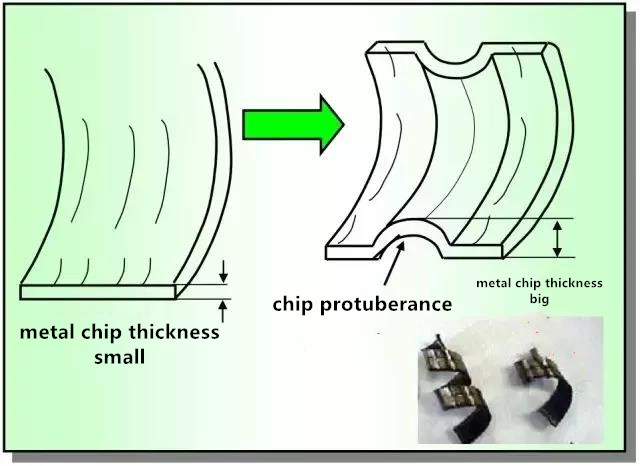

Scraping the surface of the chip from the protuberance of the chip breaking groove produces a dent—-Significant increase in chip thickness—Promoting chip breaking is highly damaging

chip breaking groove
chip breaking groove

The contact area with chips decreases and the chips discharge smoothly due to smooth contact with protrusions—Less damage to cutting tools

cut tool use in machining
cut tool use in machining

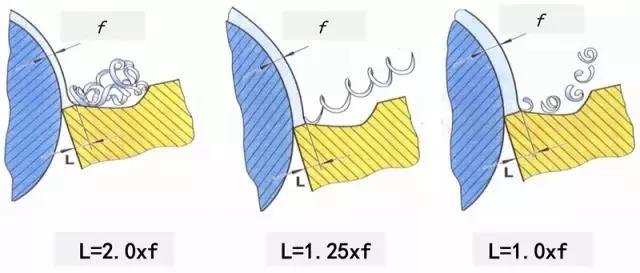

Reduction of Chip Curling Radius

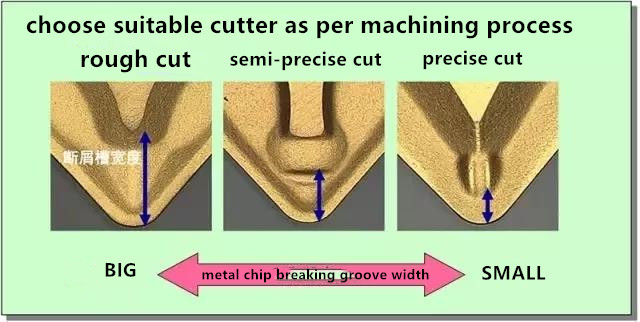

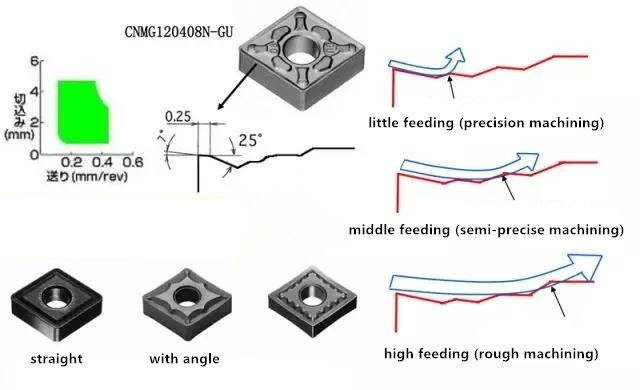

choose suitable cutter in machining process
choose suitable cutter in machining process
cutter typs usage in machining
cutter typs usage in machining
